DPM System for Glock Pistols, Glock 17/49 Gen 6 (Standard)

DPM System for Glock Pistols, Glock 17/49 Gen 6 (Standard)

From the sixth generation onward, Glock uses a redesigned recoil assembly with only a single recoil spring on the 17 and 49. This is a simple design but can hardly be tuned to ammunition or shooting style. The DPM System completely replaces this factory spring and, with its patented Progressive Triple Spring technology, comes with seven freely combinable recoil springs in three strength ratings.

Depending on the combination of soft, medium and hard springs, the total spring force can be adjusted in fine increments, up to just under 24 pounds with the slide fully open. The Standard version is designed for common factory ammunition in the 115 to 124 grain range and is suitable for sport, competition and training. If you are looking for the system for reduced loads, compensators or suppressors, you will find the Soft version here.

Advantages at a glance:

• Seven recoil springs in three strength ratings for precisely tuned recoil characteristics
• Direct replacement for the factory single spring, no modification to the pistol
• Smoother slide cycling protects the pistol and a mounted red dot sight
• Suitable for factory and tuned pistols in sport, training and everyday use

Features:

• Progressive Triple Spring technology with interchangeable outer springs
• Soft springs (1.0 mm, black): short 7.5 lb, long 7.9 lb
• Medium springs (1.05 mm, grey): short 6.85 lb, medium 7.5 lb, long 8.15 lb
• Hard springs (1.1 mm, gold): short 7.7 lb, long 8.15 lb
• Total spring force with slide fully open: approx. 24 lb
• Designed for factory ammunition from 115 to 124 grain

Compatibility:

• Glock 17 (Gen 6)
• Glock 49 (Gen 6)

Application:

The system replaces the complete original recoil spring assembly. Please observe the manufacturer's installation instructions before first use.

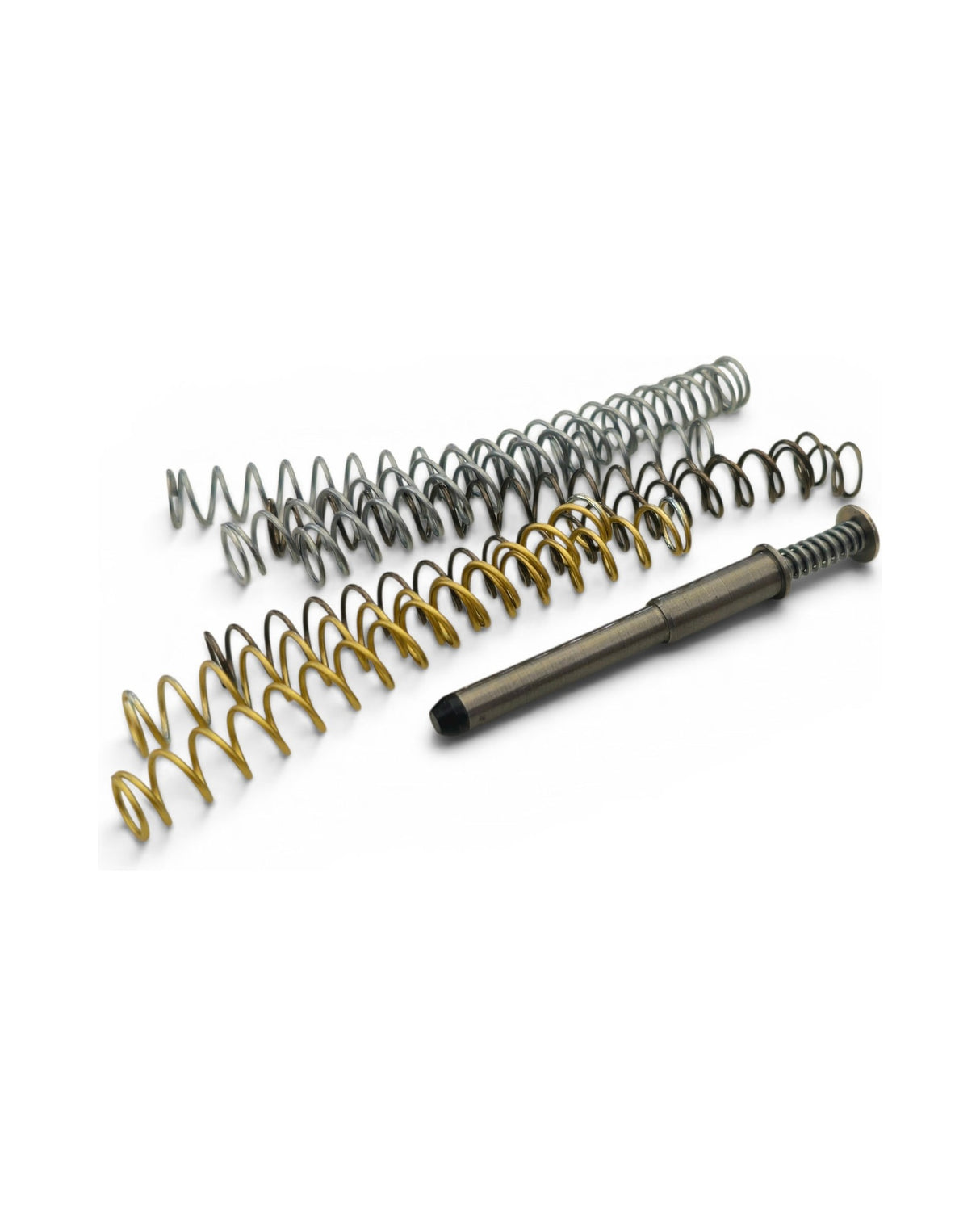

Scope of delivery:

• 2× outer spring soft (1.0 mm, black)
• 3× outer spring medium (1.05 mm, grey)
• 2× outer spring hard (1.1 mm, gold)
• 1× guide rod with spring cup

OEM part number:

1000412
