DPM System, CZ Tactical Sport Orange / TS2 | TS2 Orange Bull Barrel

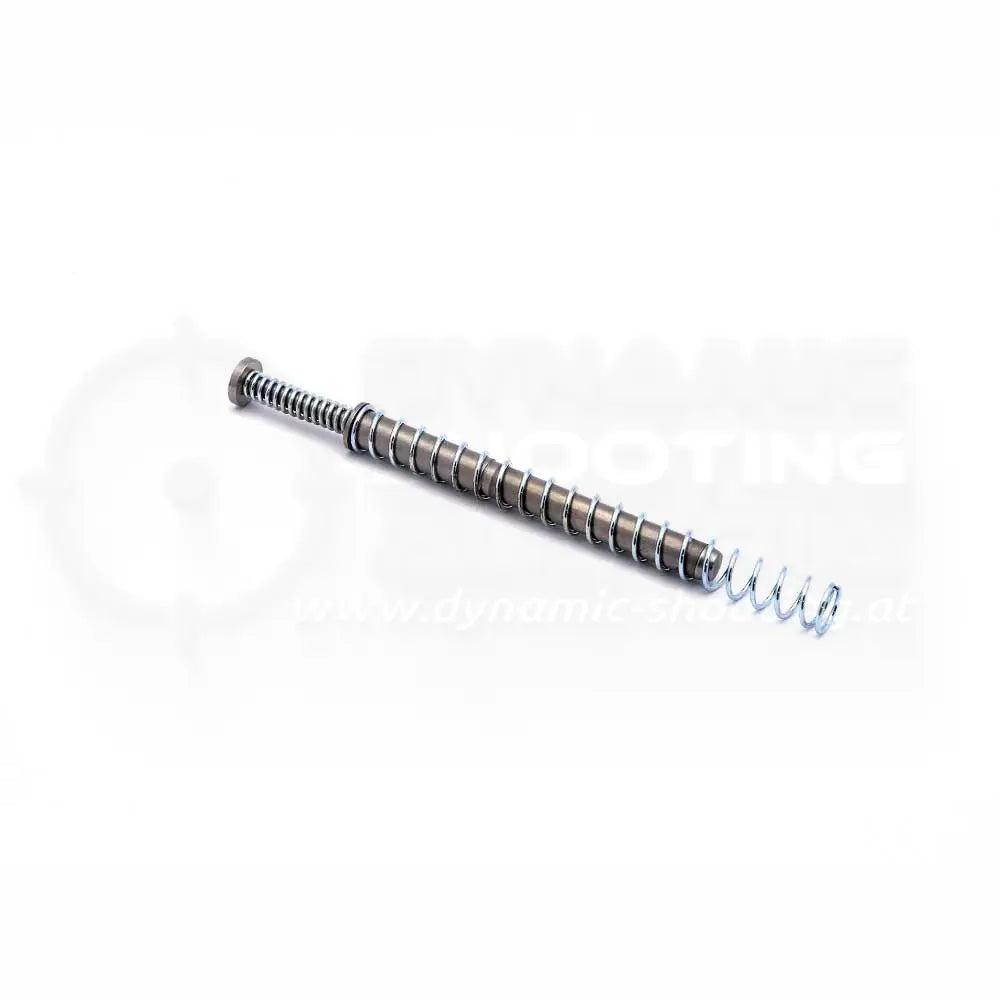

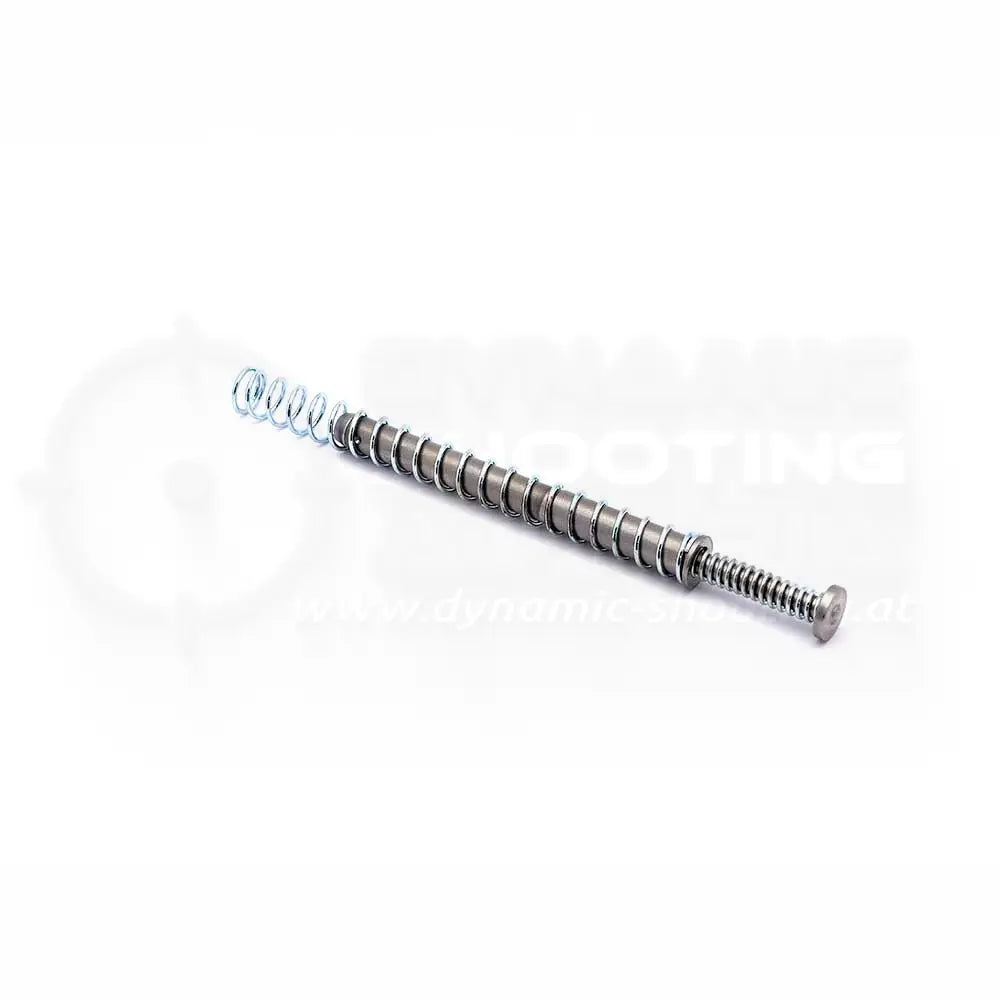

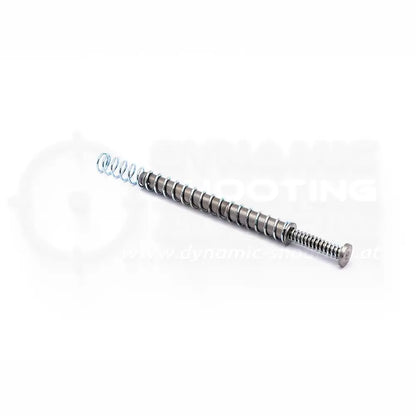

Recoil dampening spring system from DPM for the CZ Tactical Sport Orange and CZ TS2

This recoil spring system from DPM is designed to use 3 springs for damping instead of just 2 like the original recoil spring.

This third spring creates additional counterpressure just before the bolt hits the locking block, slowing the bolt down. This is clearly noticeable after installation, even when the weapon is empty and manually cycled.

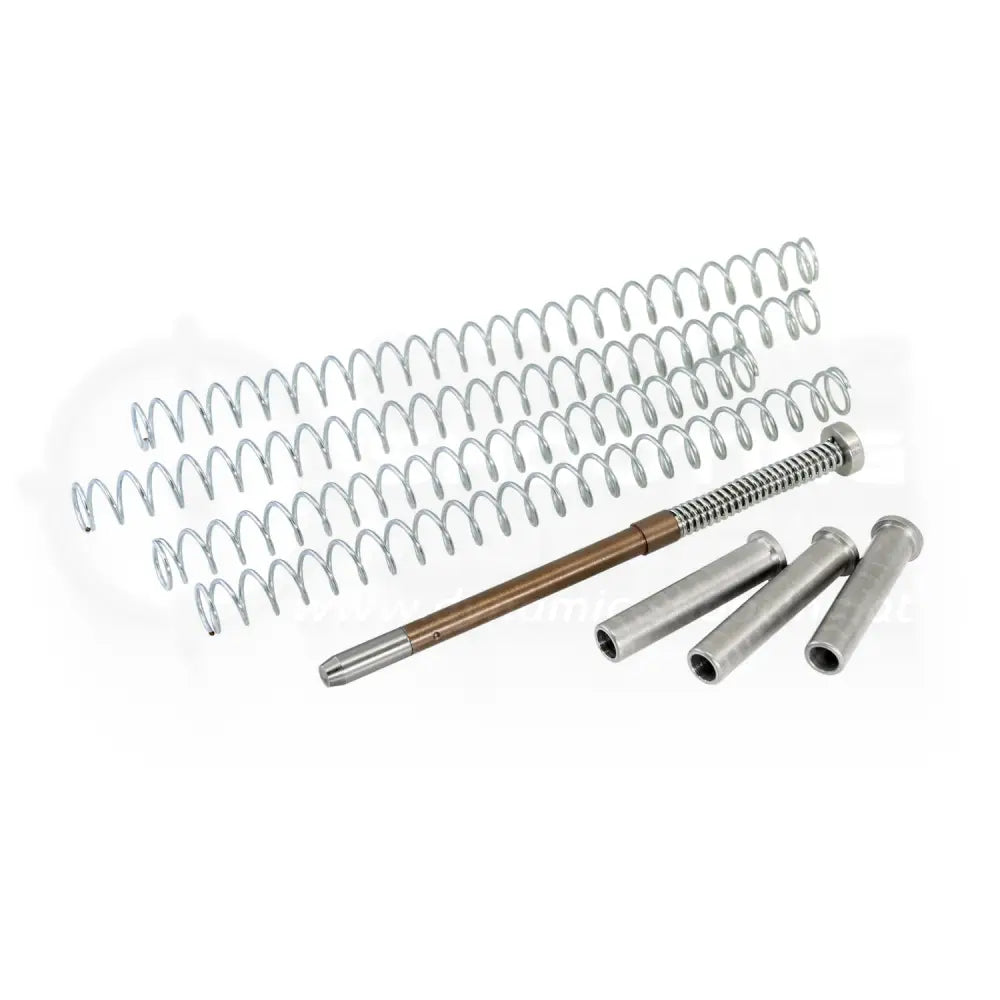

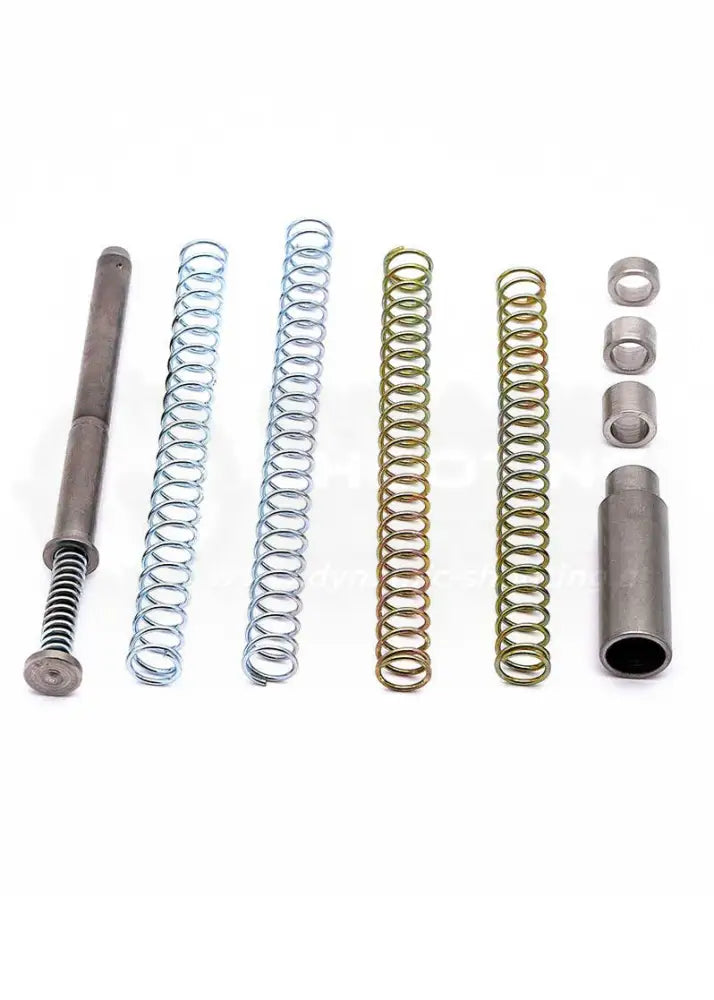

The DPM system includes four different springs and three spacers that allow the shooter to precisely adjust the pistol's opening and closing positions. The two short springs, each 1 mm thick, are designed for use with heavily loaded ammunition, and the two long springs, each 0.95 mm thick, are designed for use with lightly loaded cartridges, allowing the shooter to adjust the pistol to the ammunition used and their personal preferences.

The different spacers and springs result in the following strengths:

• S 1 Gold short (23.5 turns): 5.7 lbs
• S 2 Gold long (25 turns): 6.6 lbs
• S 3 Silver short (23.5 turns): 7.3 lbs
• S 4 Silver long (25 turns): 8.4 lbs
• Short spacer: approx. 15 lbs
• Middle spacer: approx. 19 lbs
• Long spacer: approx. 23 lbs

This recoil damping system offers the following advantages:

• Increase in the service life of the weapon or reduce wear due to lower load
• Reduction of recoil
• General improvement of repetition behavior and thus avoidance of feeding problems
• Better control of the pistol and thus faster firing sequences
• When using a red dot sight, the service life is increased as it is also subjected to less stress

Optionally available for the following CZ pistols:

• CZ 75 Tactical Sport Orange and CZ TS2
• CZ TS2 Orange Bull Barrel

OEM part number:

• 1000236 (CZ 75 TS Orange and TS2)
• 1000361 (CZ TS2 Orange Bull Barrel)
