DPM System, Walther PDP (4.0" & 4.6" Barrel Length)

DPM System, Walther PDP (4.0" & 4.6" Barrel Length)

The DPM Mechanical Recoil Reduction System for the Walther PDP with 4.0" and 4.6" barrel lengths replaces the original guide rod and recoil spring inside the pistol, reducing felt recoil through a finely tuned multi-spring system. An additional buffer spring integrated into the rod builds up back pressure just before the slide's rearward stop, controllably slowing the slide and preventing it from harshly impacting the frame. The result is a smoother cycling action, less muzzle flip, and better control over the firearm. With over 18 adjustment options, the system can be precisely adapted to ammunition strength and shooting style – also ideal for PDP models with threaded barrels and when using compensators.

Advantages at a glance:

• Noticeably reduced recoil and less muzzle flip ensure faster and more precise follow-up shots
• The dampened slide stop protects the slide, frame, and any mounted red dot sight, extending its lifespan
• 18 adjustable spring combinations for precise tuning to the ammunition used
• Direct replacement of the original guide rod without modification to the firearm – external dimensions and holster compatibility remain unchanged
• Perfectly suited for variants with threaded barrels, e.g., for compensator or suppressor setups

Features:

• The spring force can be adjusted via two buffer springs (0.7mm and 0.8mm) in three lengths each:

  Buffer Spring	Short	Medium	Long
  0.7mm (Soft)	8kg/17lb	9kg/19.8lb	10kg/22lb
  0.8mm (Standard)	9kg/20lb	10.5kg/23lb	11.5kg/26lb

  Without buffer spring (full open position): 7kg/15lb – sufficient for particularly weak loads.

• Precision-machined multi-spring guide rod made of steel
• 18 adjustable configurations


Suitable for:

• Walther PDP Full Size with 4" barrel
• Walther PDP Compact with 4" barrel
• Walther PDP F-Series with 4" barrel
• Walther PDP Pro SD Compact with 4.6" threaded barrel

The decisive factor is the barrel or slide length, not the frame size. The system fits all PDP variants with a 4" barrel, as well as the Pro-SD-Compact version with a 4.6" threaded barrel. For models with 4.5" or 5.0" barrels, the matching DPM variant is available here.

Application:

The system directly replaces the original guide rod with recoil spring and is installed without any further modification to the firearm. Before first use, please observe the manufacturer's installation instructions. The desired spring force is selected to match the ammunition strength by combining outer and buffer springs; readjustment is possible at any time.

Scope of delivery:

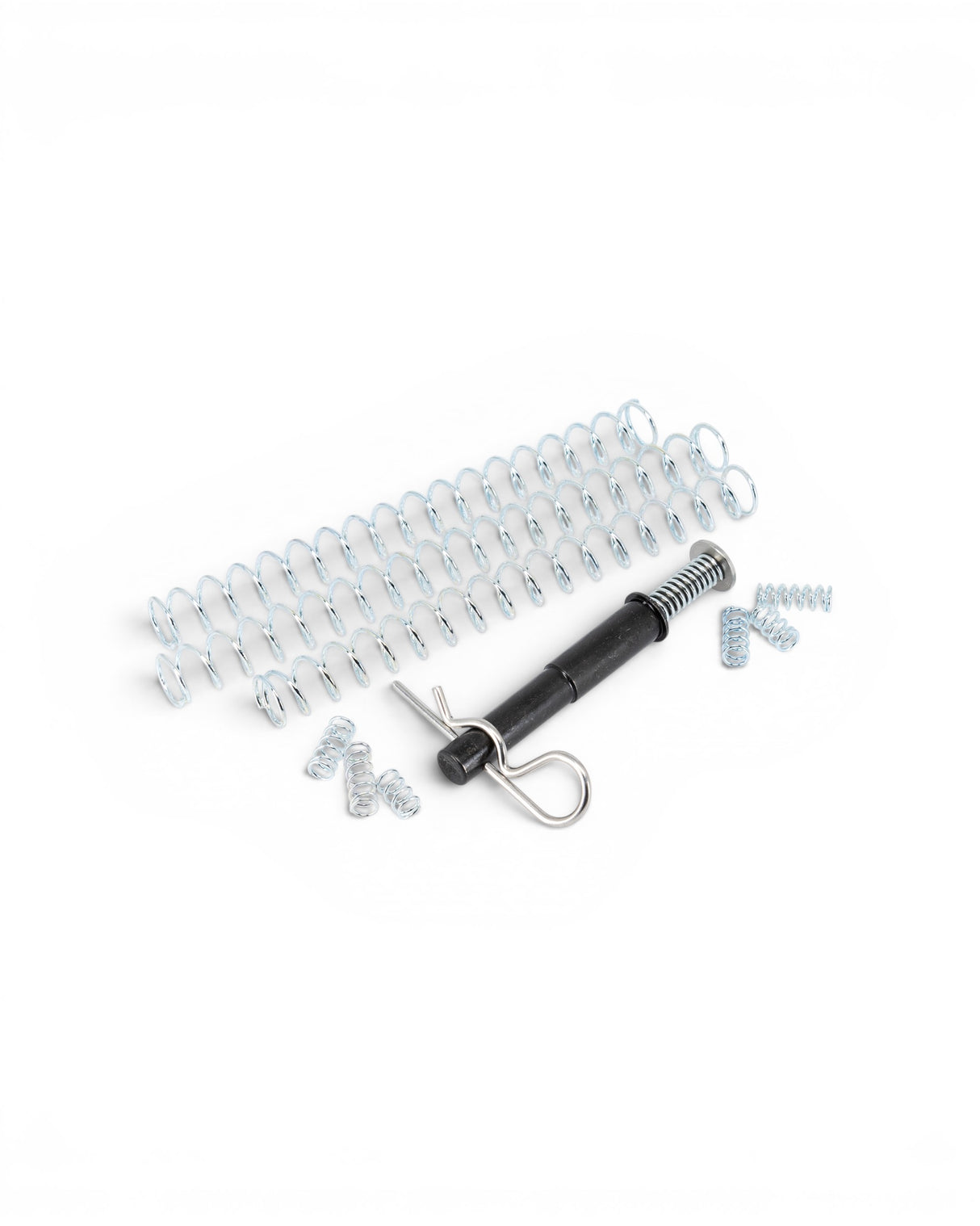

• 1× DPM multi-spring guide rod for Walther PDP 4.0" & 4.6"
• Set of outer and buffer springs for 18 settings
• Installation instructions

OEM part number:

1000312
