DPM System, CZ 75 TS Czechmate Open Edition

DPM Mechanical Recoil Reduction System for the CZ 75 TS Czechmate in 9mm caliber

The DPM Recoil Dampening System is a sophisticated spring system that serves as a direct replacement for the original spring guide rod of the CZ 75 TS Czechmate Open Edition. Installation is carried out without any modifications to the sport pistol.

How the DPM system works

The system is based on an innovative guide rod with three interlocking springs. The integrated third spring reduces the force with which the bolt locks, or "slams open."

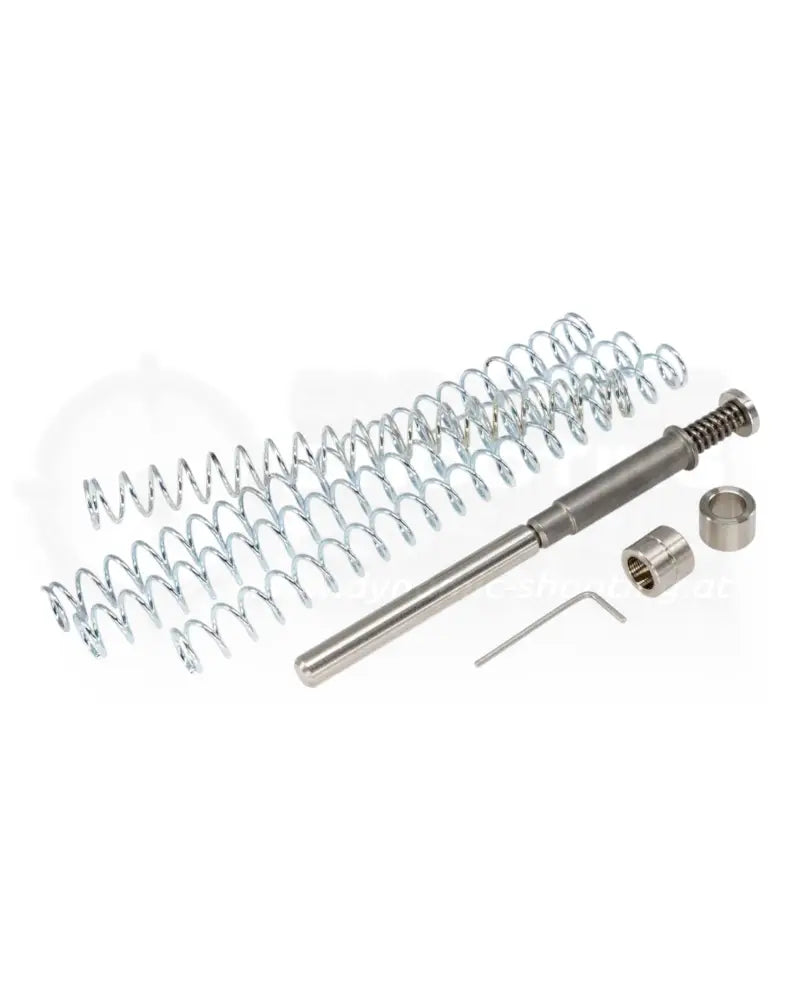

Included in delivery:

• 1 dark grey, grooved spacer (stronger damping effect)
• 1 silver, smooth spacer washer (lighter damping effect)
• 4 different outer springs for individual adjustment

A notice:

The enclosed spacer washer must always be installed when using the DPM guide rod and springs!

Spring strengths:

• Short spring: approx. 6.6 lbs
• Medium/short spring: approx. 7.5 lbs
• Medium/long spring: approx. 8.4 lbs
• Long spring: approx. 9.25 lbs

Total thickness including spacer:

• With short spacer: approx. 23.5 lbs
• With long spacer: approx. 25.3 lbs

The advantages of this DPM system:

• Noticeable reduction in recoil and upward recoil
• Faster follow-up shots and optimized firing rate
• Protection of the grip and slide
• Fewer loading delays
• Better control and faster follow-up shots
• Increases the lifespan of mounted red dots

Made in Greece – EU quality product!

OEM part number:

1000101
